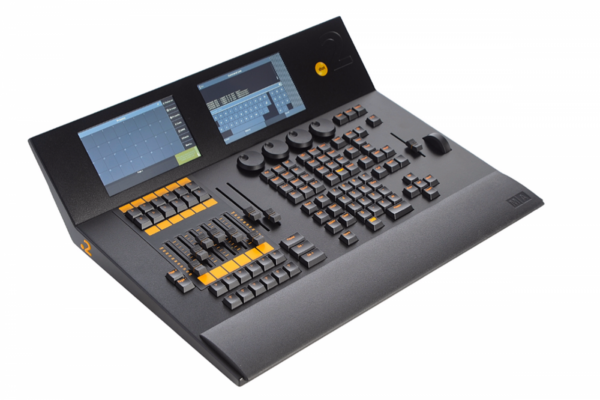

MA dot2 Core Lighting Console

The dot2 core is a compact lighting console designed for small to medium sized productions up to 4,096 control channels.

Intuitive operation is the core of the dot2 philosophy and with a comprehensive set of connectivity hardware on all console models, the dot2 range is suitable for most theatre, touring, corporate, television and education lighting environments.

The dot2 core is the heart of the dot2 range and includes the full programming section, master playback section, 6 fader playbacks and 12 individual playback buttons. Two built in touch screens and support for one external touch screen ensure the dot2 core has the flexible hardware required for almost any kind of show.

Output connectors 4 x XLR 5pin (DMX)
3 x USB
1x DVI-D
1 x DIN (MIDI)
1 x XLR 4pin (desk lamp)

Input connectors 1 x etherCON (dot2-Net, sACN, Artnet)
1 x XLR 5pin (DMX)
1 x XLR 3pin (SMPTE)
1 x DIN (MIDI)
1 x Sub-D 15pol (Analogue Remote)
1 x IEC 60320 C13/C14 (IEC cord)
