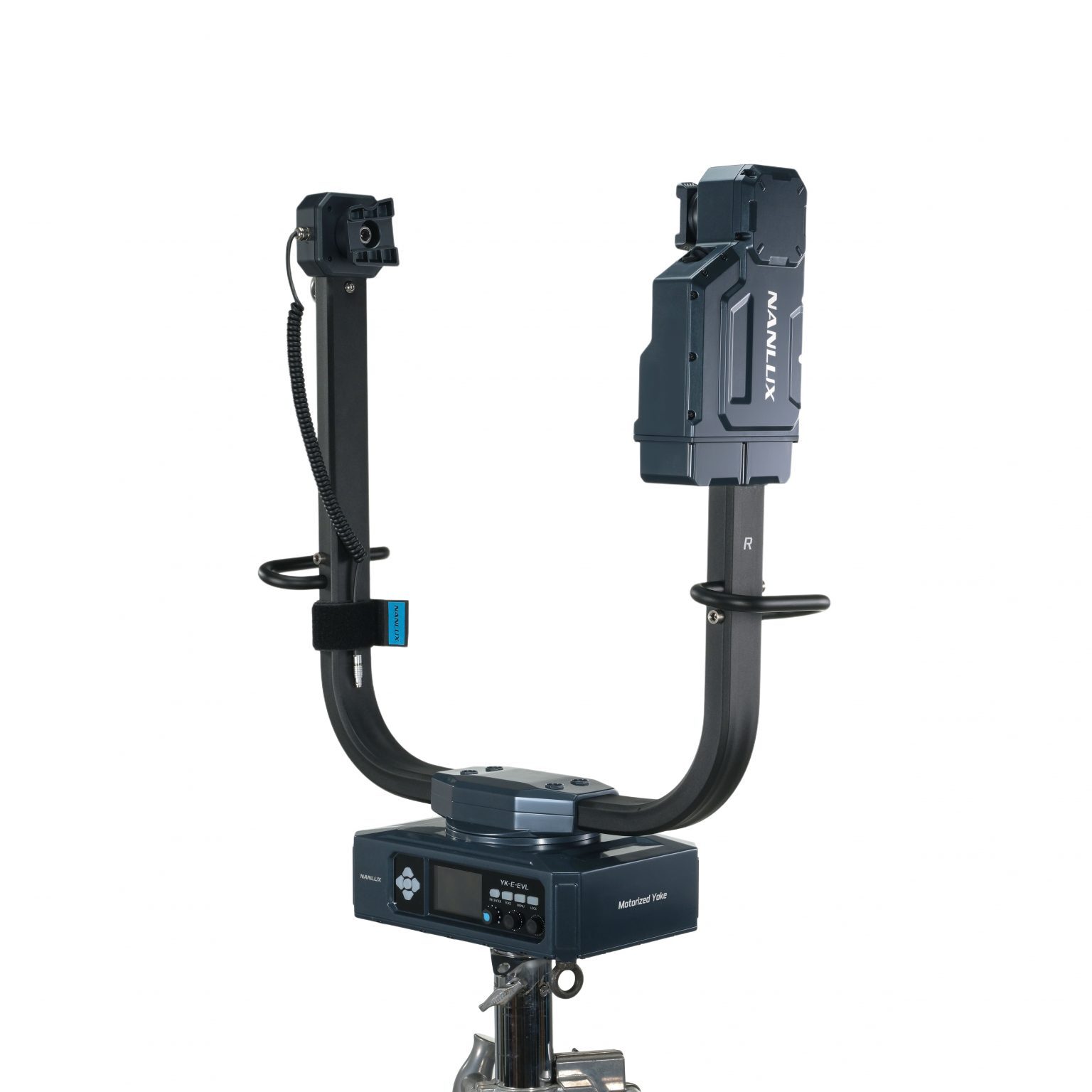

Achieve motorized control of your Evoke 5000B and 2400B fixtures and find easy 540° (+/-270°) pan and 270°(+/-135°) tilt adjustments with this YK-E-EVL Motorized Yoke-L for Evoke 5000B & 2400B from Nanlux. A variety of control options include onboard buttons on the yoke itself, the Nanlink app, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, or a separately available wired WC-LM6P-C1 controller. The yoke’s IP66 rating means reliable weatherproof operation. Nanlux includes a 24.7′ long AC power cable and the necessary adapters.
Users have the ability to recenter the attached light to 0° and lock the settings. Onboard control is quick and precise thanks to a 3.5″ screen, nine buttons, three knobs, and an intuitive menu. You also get screen rotation support, adjustable screen brightness, and the option to turn the backlit buttons on or off.
Additional Details:
Pan rotation speed: 11.48°/s
Tilt speed: 10.3°/s
Pan rotation time at full speed: 47s
Tilt rotation time at full speed: 26s
Pan torque: 20Nm
Tilt torque: 40Nm
180W rated power
100-240 VAC
1x Motorized Yoke Truss Adapter
1x Set of Evoke 2400B Quick-Release Adapters for Motorized Yoke
1x PowerCON Mains Cable
1x Nanlux Motorized Yoke-L Flight Case
